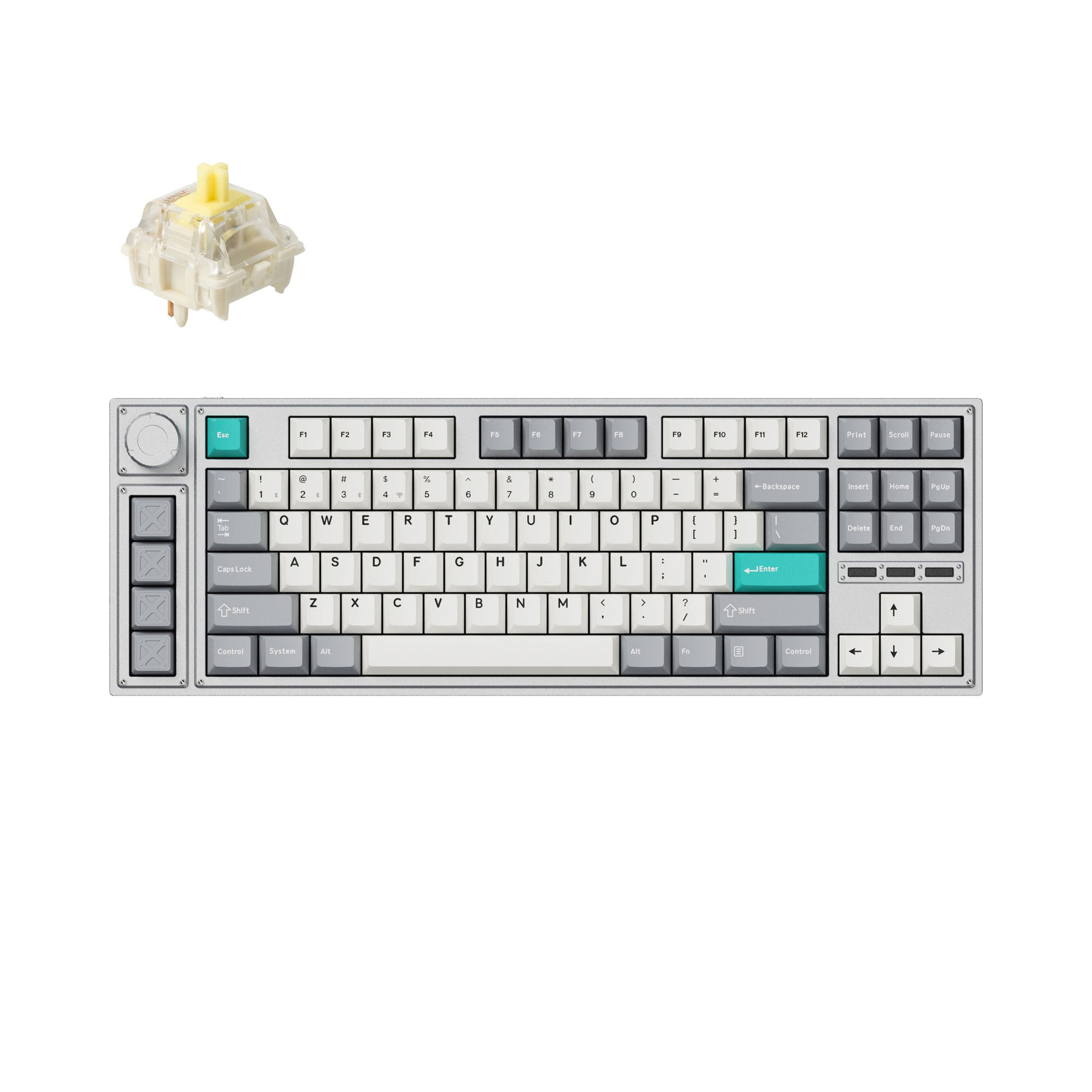

Lemokey L3 QMK/VIA Wireless Custom Mechanical Keyboard

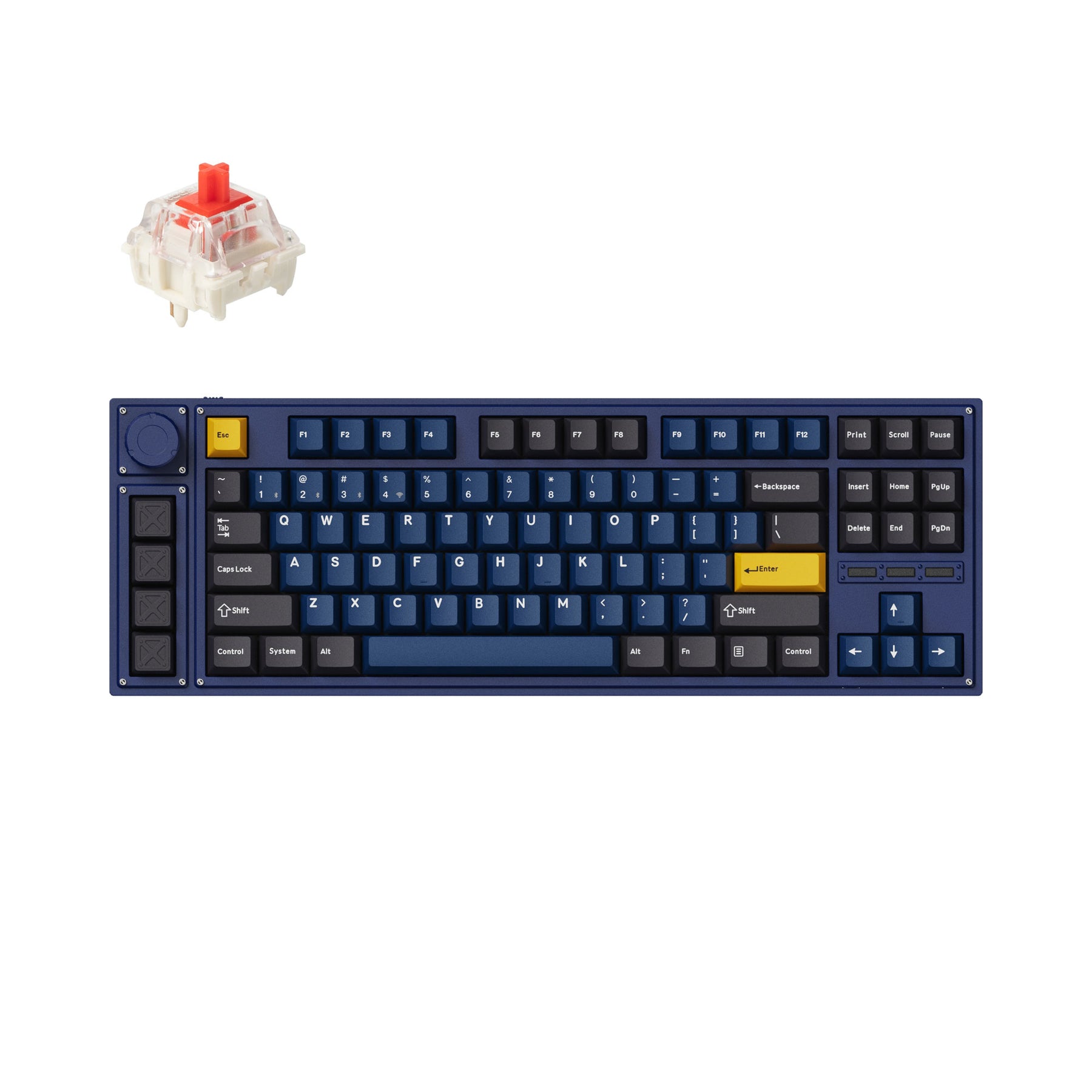

Lemokey L3 QMK/VIA Wireless Custom Mechanical Keyboard - Fully Assembled Knob / Navy Blue / Gateron Jupiter Red is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
- The keyboard PCB, the case, and the PC plate.
- Keycaps (included Mac & Windows keycaps).
- Switches.

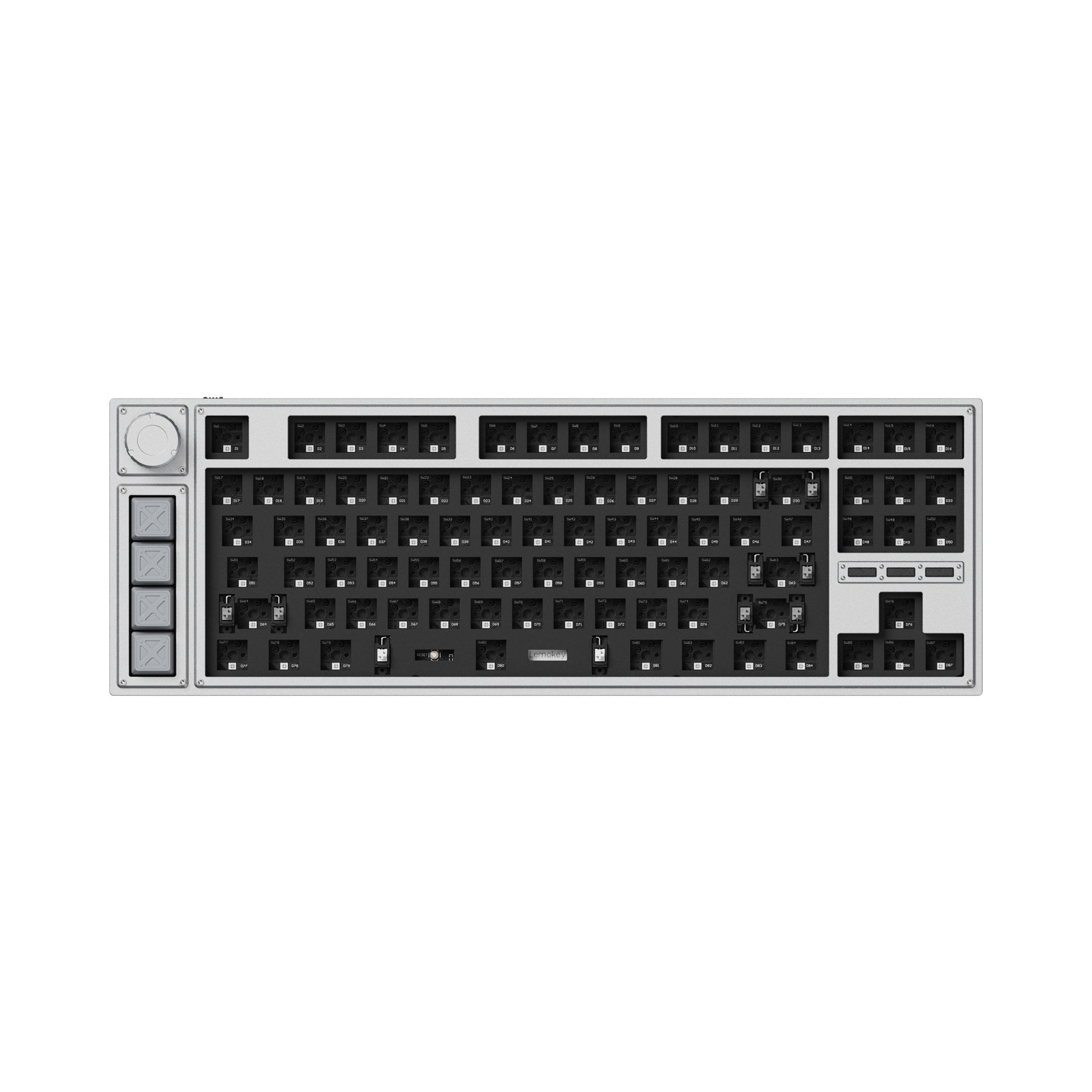

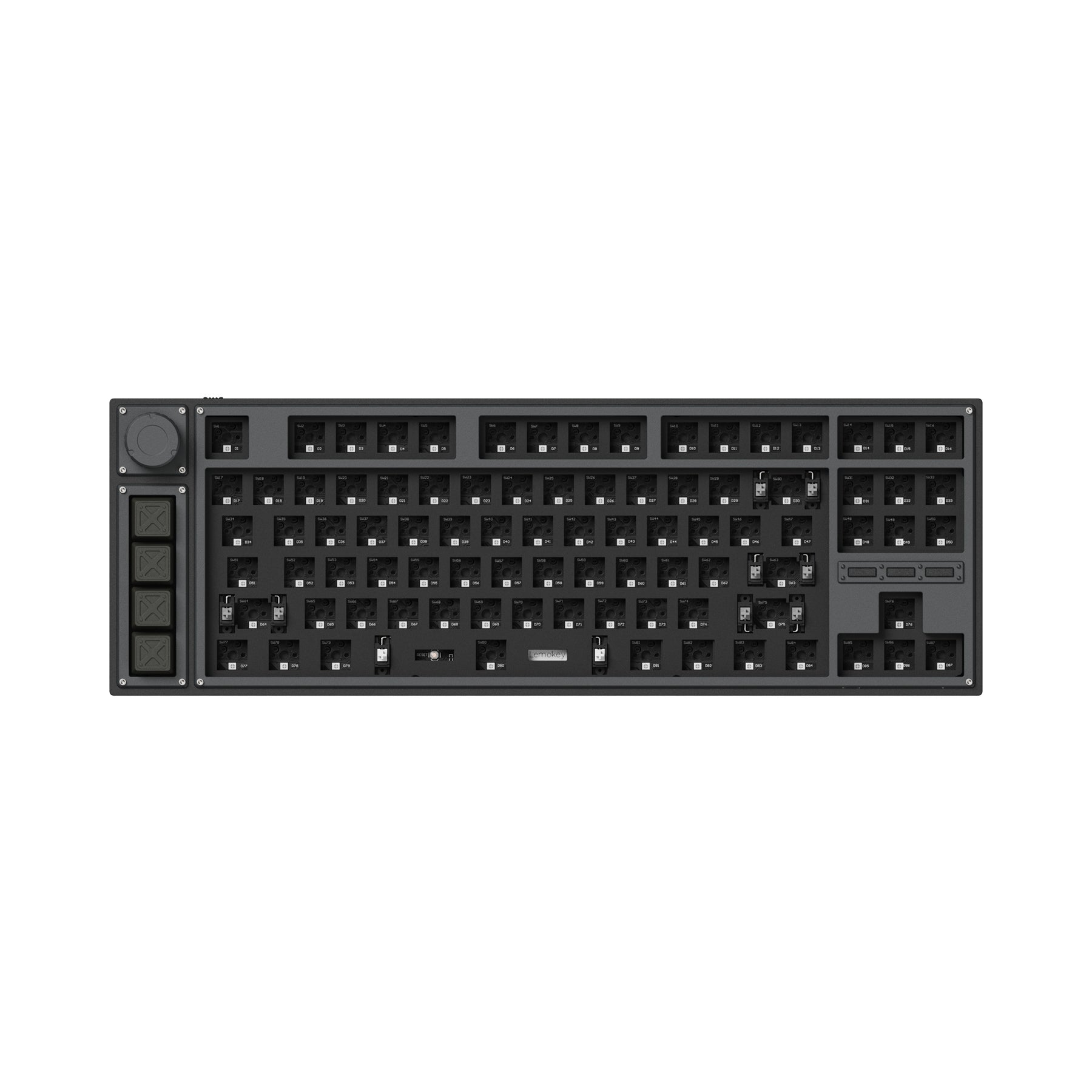

The Barebone version does not include the keycaps and switches.
No discount codes can be used for L3.
LEMOKEY L3
Introducing Lemokey L3, a 2.4 GHz full metal QMK custom mechanical keyboard built for peak performance. Dominate the game in style with the 2.4 GHz wireless connection in the L3’s solid metal body. The open-sourced QMK software brings endless possibilities for you to customize your favorite keys and macros with ease.
As a brand of Keychron, the Lemokey L3 can be assembled easily so you can fine-tune each component the way you want, together with a flexible double-gasket design, hot-swappable PCB, and Bluetooth connectivity for multitasking, the L3 is ready to bring a whole new gaming experience in no time.
Play Wirelessly
2.4 GHZ WITH 1000 HZ POLLING RATE
Get ready for a brand new gaming experience with the L3’s 2.4 GHz wireless connection with a 1000 Hz polling rate. You can also connect the L3 with up to 3 devices through its stable Bluetooth 5.1 for seamless multitasking across your computer, phone, and tablet. Switch among them swiftly.
Full Metal
DURABLE AND TOUGH
The L3 is not just a tool, but a piece of art on your desk. The L3 is created with a 6063 aluminum CNC machined body, polished, anodized and sandblasted finish, and twenty-four manufacturing processes.
Modular Design
CUSTOMIZE WITH EASE
Every detail matter to make your favorite keyboard, that’s why every component on the L3 can be assembled, customize and adjust easily to create your ultimate typing experience.
Double-Gasket
DAMPENED SOUND AND ELASTIC
Experience the next level of key sounds and comfort with the Keychron signature double-gasket mount design. This design allows the keyboard to maintain the flexibility of the gasket structure and improves the overall typing sound.
Double-Shot PBT
DURABLE, NON-SHINE THROUGH
The long-time popular Cherry profile double-shot keycap set comes with premium non-backlight shine-through PBT material, that is oil-resistant, durable for long-term use, and with a comfy typing angle.
Programmable
KNOB & MACRO COLUMN
Upgrade your gaming experience with the additional macro keys and aluminum rotary encoder. It allows you easily customize the knob to your desired key or macro commands like zooming in/out, adjusting screen brightness, or volume, etc
QMK/VIA
REMAP ANY KEY AND ANY MACRO
The open-sourced QMK/VIA software is offering endless possibilities for anyone to remap any key and create any macro commands, shortcuts, or key combinations with ease right in a browser. You can also store your favorite setting with the L3’s onboard memory.
Simply connect the L3 to your device with a cable, open the VIA software, import the JSON file, drag and drop your favorite keys or macro commands to remap any key you want on any system (macOS, Windows, or Linux). It’s never been so intuitive to personalize your very own keymap.
Check out the video above demonstrating how to remap the M1 key to a Sleep key with the VIA software to create a shortcut to put your Windows to sleep (Win + L).
A brand new powerful ultra-low-power ARM chip (MCU) that is armed with 256K Flash to provide more flexibility for developers, and makes latency non-existent for the competitive gamer.
Get the L3 keymap working on VIA
Since the VIA code for the L3 is still awaiting approval from Github, it is not yet automatically recognized. Please download the appropriate keymap JSON file (ANSI or ISO) below, open VIA, turn on "Show Design tab" on "Settings" tab, and drag the JSON file into the “Design” tab on VIA to get the L3 keymap working on VIA.
REMAP ANY KEY AND ANY MACRO
The open-source QMK firmware means endless possibilities for key remapping, macros, shortcuts, and more. Now you can easily customize each key with the Lemokey Launcher web app.
* Please use the latest version of Chrome / Opera / Edge browser to open the Launcher and connect the keyboard to your device via wired mode.
Hot-Swappable
CUSTOMIZE YOUR SWITCH ANYTIME
Every detail matters for a personalized typing experience, that’s why we give you the power. You can hot-swap every switch on the L3 with almost all of the 3pin and 5pin MX style mechanical switches on the market (including Cherry, Gateron, Kailh, Panda, etc.) without soldering required. You can customize your own typing experience in seconds.
For Mac and Even More
EXTRA COMPLIMENTARY KEYCAPS
For every L3 Fully Assembled version, we will give away 11 complimentary extra keycaps. We want to offer you the ability to customize your L3 even more.
For Carbon Black Frame
For Space Silver Frame
For Navy Blue Frame
For More Keycap Profile
SOUTH-FACING RGB
The south-facing RGB is designed to illuminate backlight to the typist when the non-shine-through PBT keycaps are installed. With 22 types of RGB backlight settings (Watch the video above for all backlight settings), you can further fine-tune the RGB hue, saturation, brightness, effect speed, and different modes, or even remap these keys with Launcher web app.
Gateron Jupiter Switch
PRE-LUBE AND RELIABLE
Our exclusive Gateron Jupiter mechanical switch (for the Fully Assembled version only) comes with a 5-pin design, its pre-lubed with a reliable Gateron quality standard with up to 80 million keystrokes lifespan. While their unique LED diffuser design offers high RGB backlight transmittance and softer backlight effect.
Screw-In Stabilizers
SMOOTH AND STABLE
The built-in PCB-mounted screw-in stabilizers create a smooth typing experience with less wobbliness on the big keys such as space bar, shift, enter, and delete. You can even customize your favorite 3rd parties stabilizers on your own.
Looking for ISO Layout?

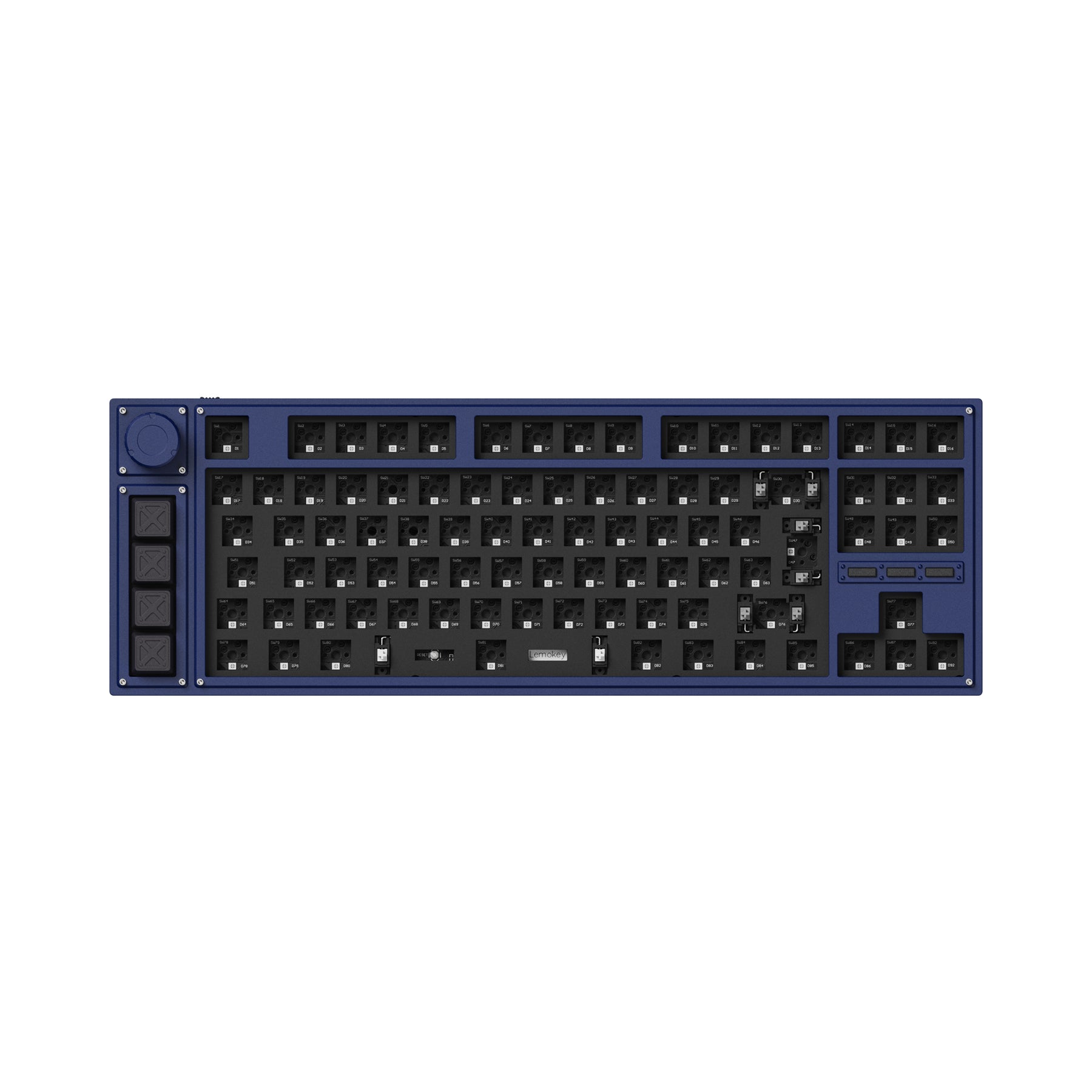

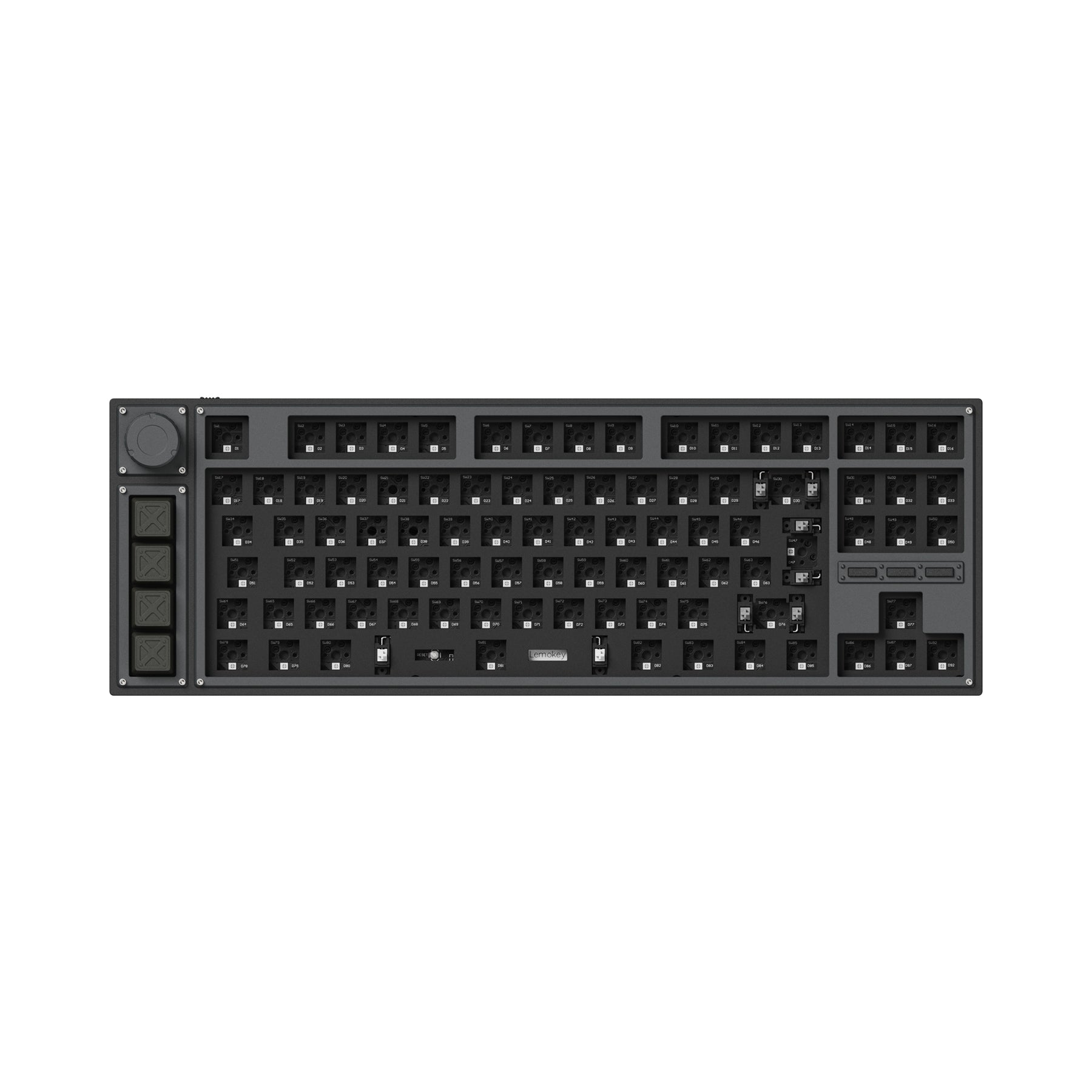

The L3 ISO collection comes with fully assembled keyboards with 🇬🇧UK, 🇩🇪German, 🇩🇰🇫🇮🇳🇴🇸🇪Nordic, and🇨🇭Swiss layout, and the “Barebone ISO" option is suitable for all ISO countries (e.g.: 🇮🇹Italy, 🇵🇹Portuguese, 🇭🇺Hungary, etc.) to build their keyboard with keycaps in their preferred languages and switches.
What's in the box?
Specs
| Dimension | 401 x 137 mm (15.78 x 5.39 inches) |
|---|---|
| Number of Keys | 91 (Unique tenkeyless layout) |
| Layout | ANSI (US) Fully Asssembled and Barebone/ISO (EU) Barebone |
| Back Height without keycaps | 29.84 mm (1.17 inches) |
| Front Height | 19.8 mm (without keycaps) |
| Back Height | 29.84 mm (without keycaps) |
| Weight | About 1976 g (Fully Assembled version) |
| Frame Material | Full CNC machined aluminum |
| Plate Material | PC |
| Keycap | Cherry double-shot PBT keycaps (Non-backlight shine through) |
| Switch | Gateron Jupiter (Fully Assembled version) |
|---|---|
| Stabilizer | Screw-in PCB stabilizer |
| Switch Face | South-facing RGB |
| Backlight | 22 types of RGB backlight options plus endless possibilities |
| Hot-swappable | Yes. Compatible with most of the 3 pin & 5 pin MX mechanical switches such as Gateron, Cherry MX and Kailh, etc. |
| MCU | ARM Cortex-M4 32-bit STM32F402 (256KB Flash) |
| Cable Length | 1.8 m |
| Polling Rate | 1000 Hz (2.4 GHz and wired) / 90 Hz (Bluetooth mode) |
| N-Key Rollover (NKRO) | Yes for both wireless and wired modes |
| Operating Environment | -10 to 50℃ |
| Battery | 4000 mAh Rechargeable li-polymer battery |
|---|---|
| BT Working Time (Backlit off) | Up to 200 hours (Lab test result may vary by actual use) |
| BT Working Time (RGB) | Up to 100 hours (Lowest brightness) |
| Charging Time | Around 5 hours |
| Charging Port | USB type-C |
| Bluetooth Version | 5.1 |
| Compatible System | Windows/macOS/Linux |
| Connectivity | 2.4 GHz/Bluetooth / Type-C wired |
| Bluetooth Device Name | Lemokey L3 |
| Bluetooth Operating Distance | Within 10 meters (Open space) |
Learn more about the Lemokey L3 such as the shortcuts, assembling guide, factory reset, and more in the FAQ section.
